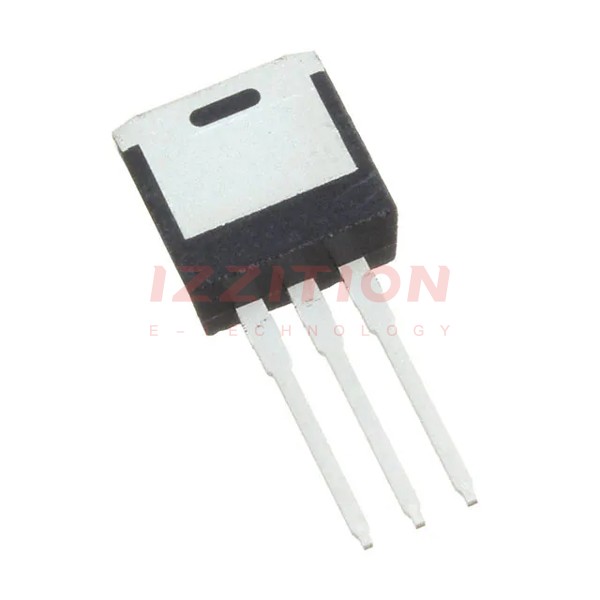

| Part Number | IPI06CN10N G | IPI08CN10N G | IPI16CN10N G | IPI26CN10N G | IPI04CN10N G | IPI05CN10N G |
|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 95A (Tc) | 53A (Tc) | 35A (Tc) | 100A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 100A, 10V | 8.5mOhm @ 95A, 10V | 16.2mOhm @ 53A, 10V | 26mOhm @ 35A, 10V | 4.2mOhm @ 100A, 10V | 5.4mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 180µA | 4V @ 130µA | 4V @ 61µA | 4V @ 39µA | 4V @ 250µA | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 139 nC @ 10 V | 100 nC @ 10 V | 48 nC @ 10 V | 31 nC @ 10 V | 210 nC @ 10 V | 181 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9200 pF @ 50 V | 6660 pF @ 50 V | 3220 pF @ 50 V | 2070 pF @ 50 V | 13800 pF @ 50 V | 12000 pF @ 50 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 214W (Tc) | 167W (Tc) | 100W (Tc) | 71W (Tc) | 300W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO262-3 | PG-TO262-3 | PG-TO262-3 | PG-TO262-3 | PG-TO262-3 | PG-TO262-3 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA |
