Please send RFQ , we will respond immediately.

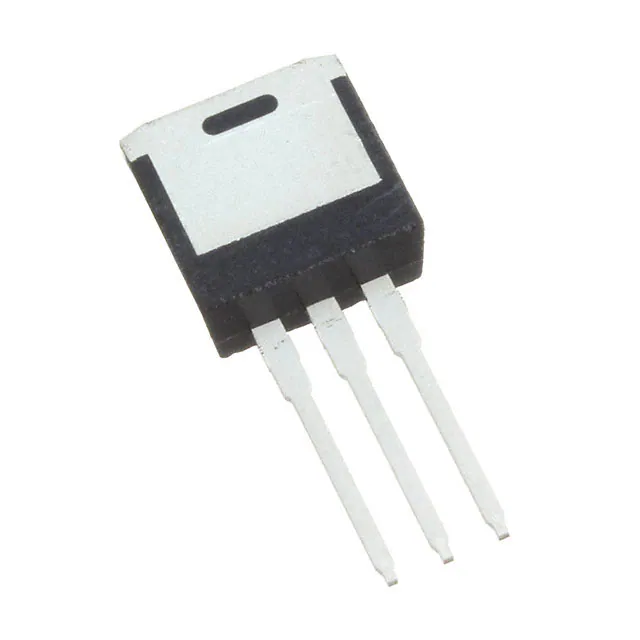

| Part Number | IPI04N03LA | IPI05N03LA | IPI06N03LA | IPI09N03LA | IPI14N03LA | IPF04N03LA | IPI03N03LA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Discontinued at Digi-Key | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) | 80A (Tc) | 50A (Tc) | 50A (Tc) | 30A (Tc) | 50A (Tc) | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 55A, 10V | 4.9mOhm @ 55A, 10V | 6.2mOhm @ 30A, 10V | 9.2mOhm @ 30A, 10V | 13.9mOhm @ 30A, 10V | 3.8mOhm @ 50A, 10V | 3mOhm @ 55A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 60µA | 2V @ 50µA | 2V @ 40µA | 2V @ 20µA | 2V @ 20µA | 2V @ 30µA | 2V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 5 V | 25 nC @ 5 V | 22 nC @ 5 V | 13 nC @ 5 V | 8.3 nC @ 5 V | 41 nC @ 5 V | 57 nC @ 5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3877 pF @ 15 V | 3110 pF @ 15 V | 2653 pF @ 15 V | 1642 pF @ 15 V | 1043 pF @ 15 V | 5199 pF @ 15 V | 7027 pF @ 15 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 107W (Tc) | 94W (Tc) | 83W (Tc) | 63W (Tc) | 46W (Tc) | 115W (Tc) | 150W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole |
| Supplier Device Package | PG-TO262-3 | PG-TO262-3 | PG-TO262-3 | PG-TO262-3 | PG-TO262-3 | PG-TO252-3-23 | PG-TO262-3 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-262-3 Long Leads, I²Pak, TO-262AA |
