Please send RFQ , we will respond immediately.

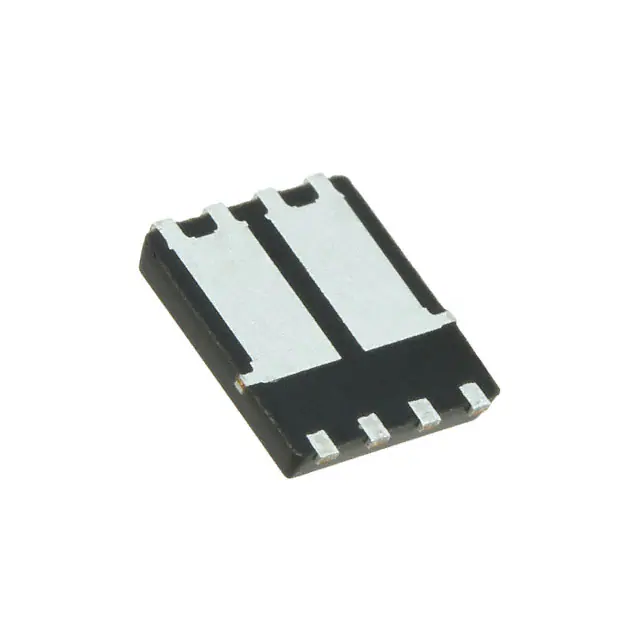

| Part Number | IPG20N06S2L35ATMA1 | IPG20N06S2L65ATMA1 | IPG20N06S2L35AATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 55V | 55V | 55V |
| Current - Continuous Drain (Id) @ 25°C | 20A | 20A | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 15A, 10V | 65mOhm @ 15A, 10V | 35mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 27µA | 2V @ 14µA | 2V @ 27µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V | 12nC @ 10V | 23nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 790pF @ 25V | 410pF @ 25V | 790pF @ 25V |
| Power - Max | 65W | 43W | 65W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount, Wettable Flank |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-4 | PG-TDSON-8-4 | PG-TDSON-8-10 |
