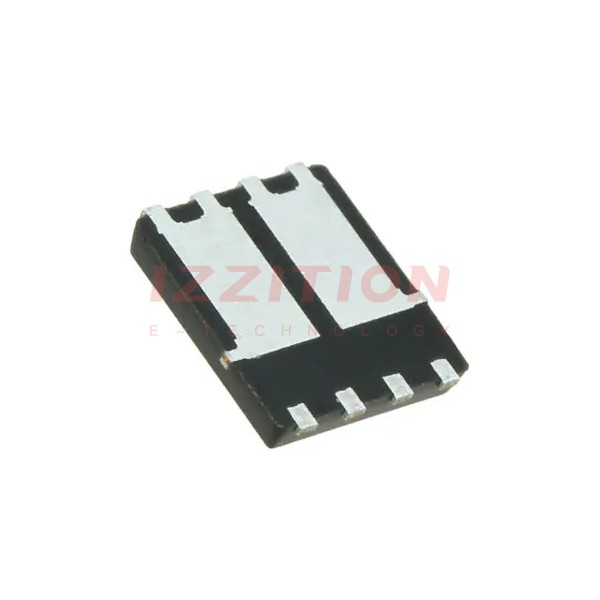

| Part Number | IPG20N04S4L11ATMA1 | IPG20N06S4L11ATMA1 | IPG20N04S4L11AATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 40V | 60V | 40V |
| Current - Continuous Drain (Id) @ 25°C | 20A | 20A | 20A |
| Rds On (Max) @ Id, Vgs | 11.6mOhm @ 17A, 10V | 11.2mOhm @ 17A, 10V | 11.6mOhm @ 17A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 15µA | 2.2V @ 28µA | 2.2V @ 15µA |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 10V | 53nC @ 10V | 26nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1990pF @ 25V | 4020pF @ 25V | 1990pF @ 25V |
| Power - Max | 41W | 65W | 41W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount, Wettable Flank |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-4 | PG-TDSON-8-4 | PG-TDSON-8-10 |
