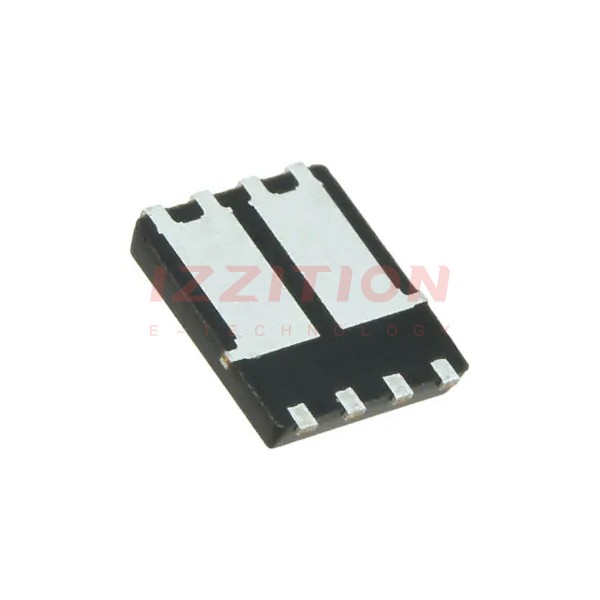

| Part Number | IPG16N10S461ATMA1 | IPG16N10S461AATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 100V | 100V |
| Current - Continuous Drain (Id) @ 25°C | 16A | 16A |
| Rds On (Max) @ Id, Vgs | 61mOhm @ 16A, 10V | 61mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 9µA | 3.5V @ 9µA |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 10V | 7nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 490pF @ 25V | 490pF @ 25V |
| Power - Max | 29W | 29W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount, Wettable Flank |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
| Supplier Device Package | PG-TDSON-8-4 | PG-TDSON-8-10 |
