Please send RFQ , we will respond immediately.

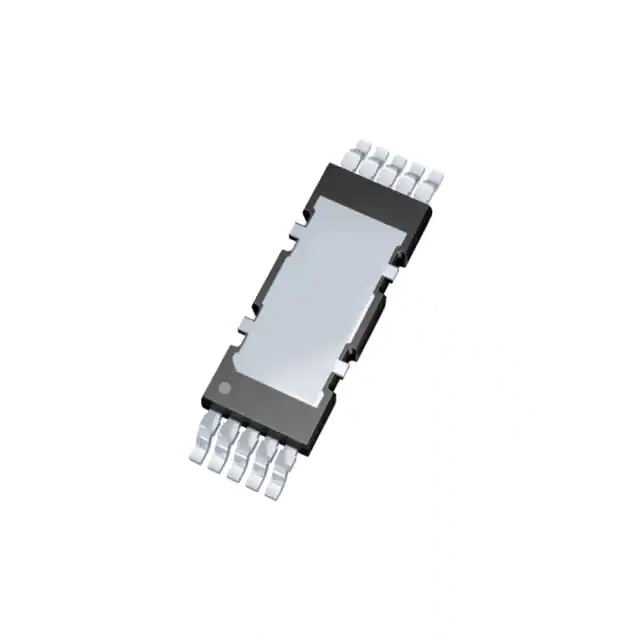

| Part Number | IPDD60R075CFD7XTMA1 | IPDD60R045CFD7XTMA1 | IPDD60R055CFD7XTMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) | 61A (Tc) | 52A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 11.4A, 10V | 45mOhm @ 18A, 10V | 55mOhm @ 15.1A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 570µA | 4.5V @ 900µA | 4.5V @ 760µA |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 10 V | 79 nC @ 10 V | 67 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2102 pF @ 400 V | 3194 pF @ 400 V | 2724 pF @ 400 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 266W (Tc) | 379W (Tc) | 329W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-HDSOP-10-1 | PG-HDSOP-10-1 | PG-HDSOP-10-1 |
| Package / Case | 10-PowerSOP Module | 10-PowerSOP Module | 10-PowerSOP Module |
