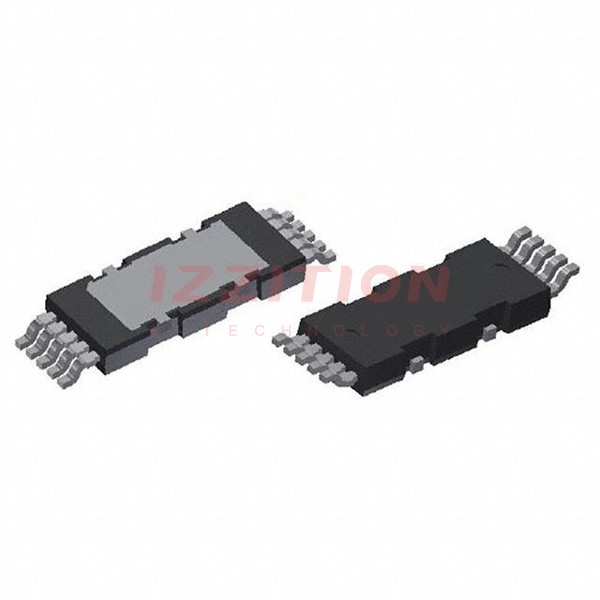

| Part Number | IPDD60R050G7XTMA1 | IPDD60R150G7XTMA1 | IPDD60R080G7XTMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) | 16A (Tc) | 29A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 15.9A, 10V | 150mOhm @ 5.3A, 10V | 80mOhm @ 9.7A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 800µA | 4V @ 260µA | 4V @ 490µA |
| Gate Charge (Qg) (Max) @ Vgs | 68 nC @ 10 V | 23 nC @ 10 V | 42 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2670 pF @ 400 V | 902 pF @ 400 V | 1640 pF @ 400 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 278W (Tc) | 95W (Tc) | 174W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-HDSOP-10-1 | PG-HDSOP-10-1 | PG-HDSOP-10-1 |
| Package / Case | 10-PowerSOP Module | 10-PowerSOP Module | 10-PowerSOP Module |
