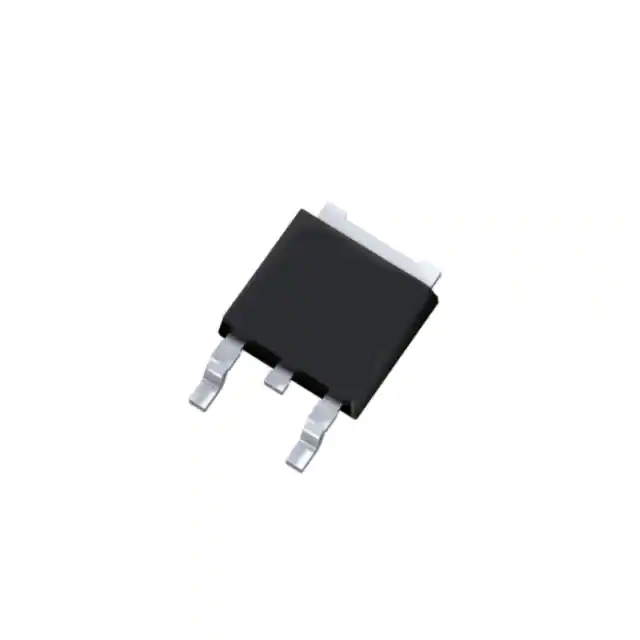

| Part Number | IPD60R460CEAUMA1 | IPD60R400CEAUMA1 | IPD60R460CEATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Obsolete |
| FET Type | - | N-Channel | N-Channel |
| Technology | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | - | 14.7A (Tc) | 9.1A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | 10V |
| Rds On (Max) @ Id, Vgs | - | 400mOhm @ 3.8A, 10V | 460mOhm @ 3.4A, 10V |
| Vgs(th) (Max) @ Id | - | 3.5V @ 300µA | 3.5V @ 280µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 32 nC @ 10 V | 28 nC @ 10 V |
| Vgs (Max) | - | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 700 pF @ 100 V | 620 pF @ 100 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 112W (Tc) | 74W (Tc) |
| Operating Temperature | - | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount |
| Supplier Device Package | - | PG-TO252-2 | PG-TO252-3 |
| Package / Case | - | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
