Please send RFQ , we will respond immediately.

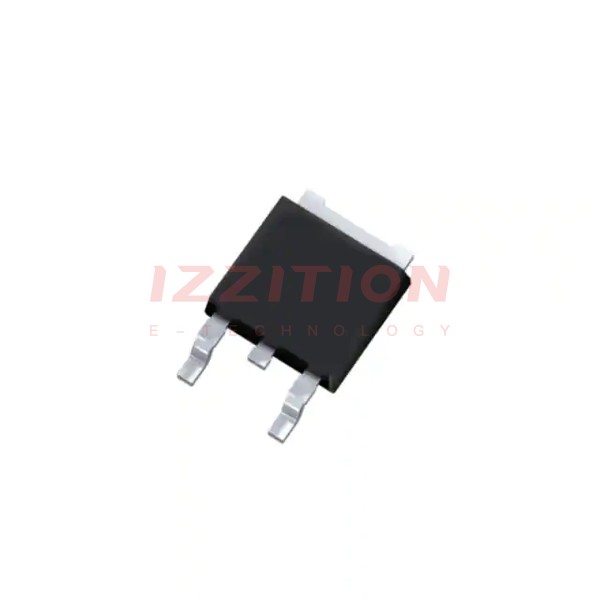

| Part Number | IPD50R520CPBTMA1 | IPD60R520CPBTMA1 | IPD50R520CPATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | - | N-Channel | - |
| Technology | - | MOSFET (Metal Oxide) | - |
| Drain to Source Voltage (Vdss) | - | 600 V | - |
| Current - Continuous Drain (Id) @ 25°C | - | 6.8A (Tc) | - |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | - |
| Rds On (Max) @ Id, Vgs | - | 520mOhm @ 3.8A, 10V | - |
| Vgs(th) (Max) @ Id | - | 3.5V @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | - | 31 nC @ 10 V | - |
| Vgs (Max) | - | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | - | 630 pF @ 100 V | - |
| FET Feature | - | - | - |
| Power Dissipation (Max) | - | 66W (Tc) | - |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | - |
| Mounting Type | - | Surface Mount | - |
| Supplier Device Package | - | PG-TO252-3 | - |
| Package / Case | - | TO-252-3, DPak (2 Leads + Tab), SC-63 | - |
