Please send RFQ , we will respond immediately.

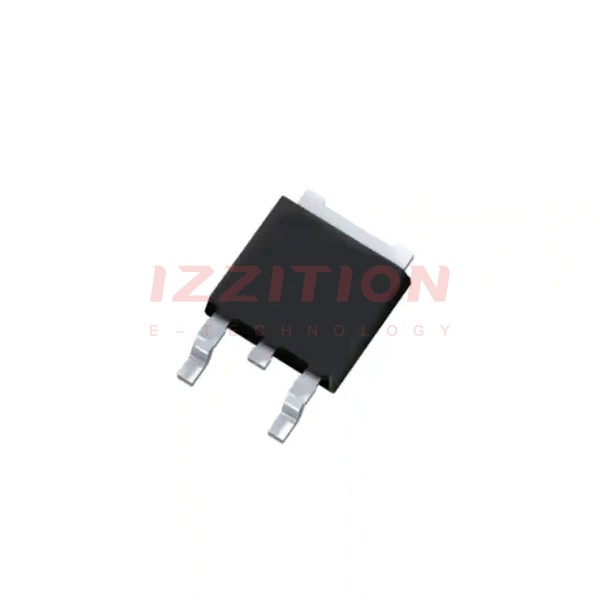

| Part Number | IPD135N03LGBTMA1 | IPD135N03LGATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active |
| FET Type | - | N-Channel |
| Technology | - | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | - | 30 V |
| Current - Continuous Drain (Id) @ 25°C | - | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | - | 13.5mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | - | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | 10 nC @ 10 V |
| Vgs (Max) | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 1000 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 31W (Tc) |
| Operating Temperature | - | -55°C ~ 175°C (TJ) |
| Mounting Type | - | Surface Mount |
| Supplier Device Package | - | PG-TO252-3 |
| Package / Case | - | TO-252-3, DPak (2 Leads + Tab), SC-63 |
