Infineon Technologies-IPC100N04S52R8ATMA1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	7V, 10V
Rds On (Max) @ Id, Vgs:	2.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:	3.4V @ 30µA
Gate Charge (Qg) (Max) @ Vgs:	45 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2600 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	75W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8-34
Package / Case:	8-PowerTDFN

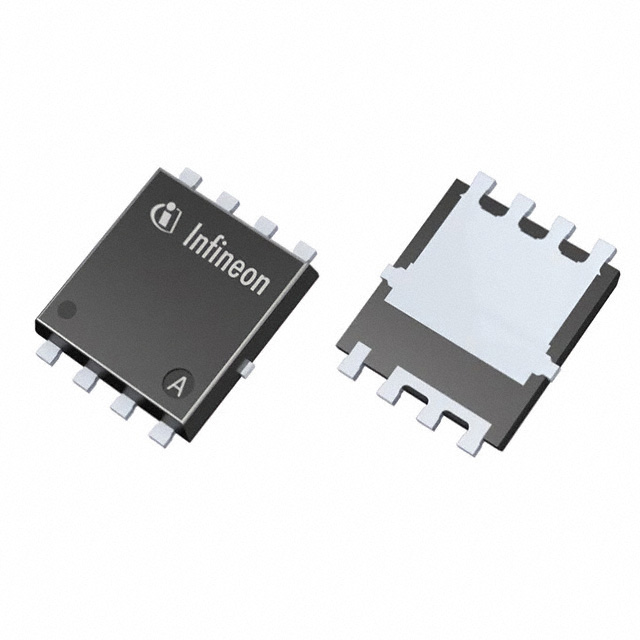

Infineon Technologies IPC100N04S52R8ATMA1
