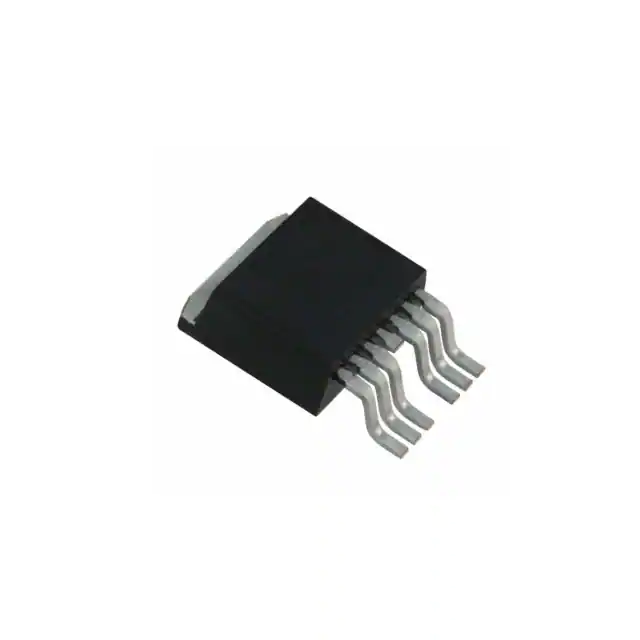

| Part Number | IPB240N03S4LR8ATMA1 | IPB240N03S4LR9ATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.76mOhm @ 100A, 10V | 0.92mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 230µA | 2.2V @ 180µA |
| Gate Charge (Qg) (Max) @ Vgs | 380 nC @ 10 V | 300 nC @ 10 V |
| Vgs (Max) | ±16V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 26000 pF @ 25 V | 20300 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 300W (Tc) | 231W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TO263-7-3 | PG-TO263-7-3 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) |
