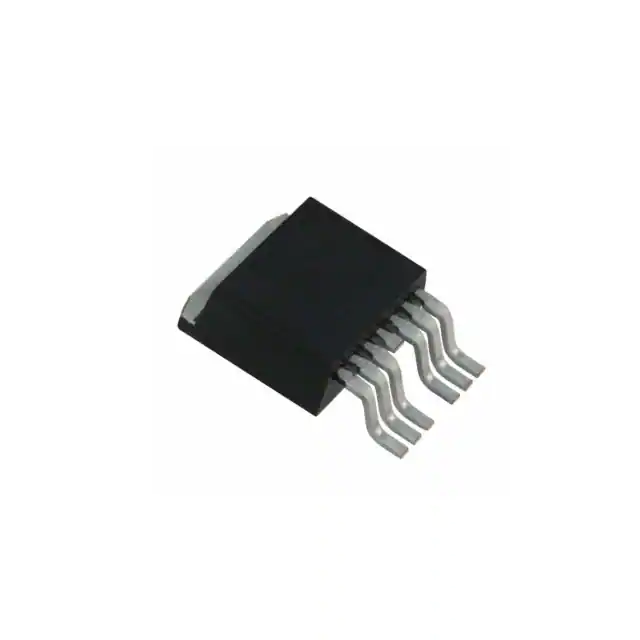

| Part Number | IPB180N04S4LH0ATMA1 | IPB180N03S4LH0ATMA1 | IPB180N04S4H0ATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V | 30 V | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) | 180A (Tc) | 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1mOhm @ 100A, 10V | 0.95mOhm @ 100A, 10V | 1.1mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 180µA | 2.2V @ 200µA | 4V @ 180µA |
| Gate Charge (Qg) (Max) @ Vgs | 310 nC @ 10 V | 300 nC @ 10 V | 225 nC @ 10 V |
| Vgs (Max) | +20V, -16V | ±16V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 24440 pF @ 25 V | 23000 pF @ 25 V | 17940 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 250W (Tc) | 250W (Tc) | 250W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TO263-7-3 | PG-TO263-7-3 | PG-TO263-7-3 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) |
