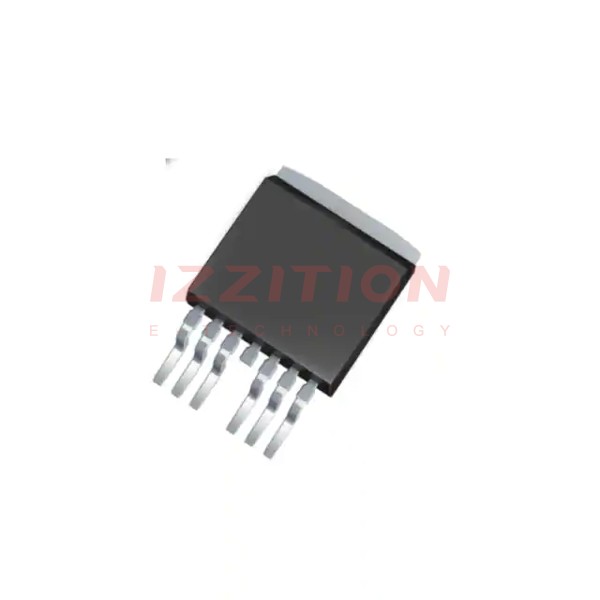

| Part Number | IPB024N10N5ATMA1 | IPB027N10N5ATMA1 | IPB020N10N5ATMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) | 120A (Tc) | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.4mOhm @ 90A, 10V | 2.7mOhm @ 100A, 10V | 2mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 183µA | 3.8V @ 184µA | 3.8V @ 270µA |
| Gate Charge (Qg) (Max) @ Vgs | 138 nC @ 10 V | 139 nC @ 10 V | 210 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 10200 pF @ 50 V | 10300 pF @ 50 V | 15600 pF @ 50 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 250W (Tc) | 250W (Tc) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TO263-7 | PG-TO263-3 | PG-TO263-3 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
