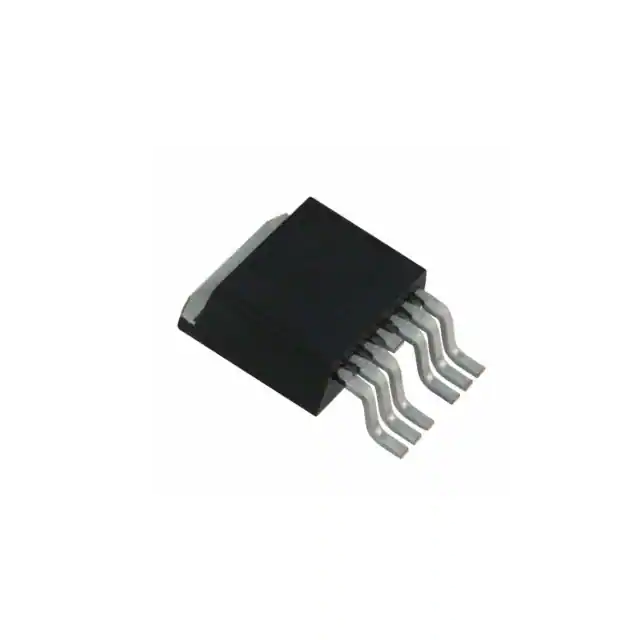

| Part Number | IPB010N06NATMA1 | IPB014N06NATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Ta), 180A (Tc) | 34A (Ta), 180A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 1mOhm @ 100A, 10V | 1.4mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 280µA | 2.8V @ 143µA |
| Gate Charge (Qg) (Max) @ Vgs | 208 nC @ 10 V | 106 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 15000 pF @ 30 V | 7800 pF @ 30 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 300W (Tc) | 3W (Ta), 214W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TO263-7 | PG-TO263-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) | TO-263-7, D²Pak (6 Leads + Tab) |
