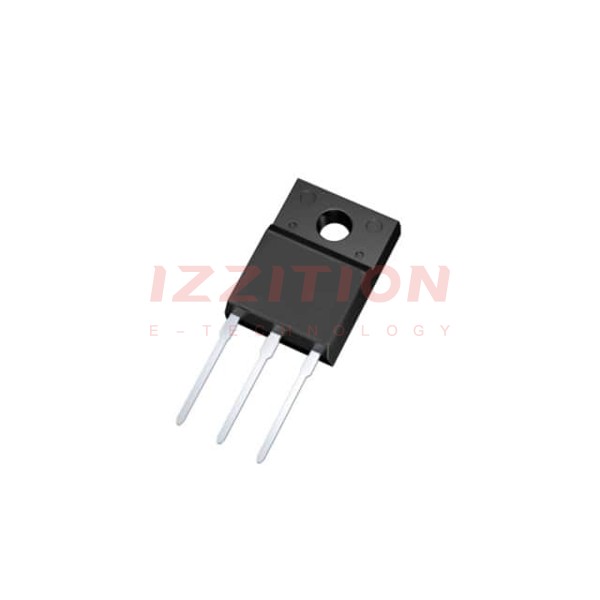

| Part Number | IPAW70R600CEXKSA1 | IPAW60R600CEXKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 700 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Tc) | 10.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 1A, 10V | 600mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 210µA | 3.5V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V | 20.5 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 474 pF @ 100 V | 444 pF @ 100 V |
| FET Feature | - | Super Junction |
| Power Dissipation (Max) | 86W (Tc) | 28W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-3-FP | PG-TO220-FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack |
