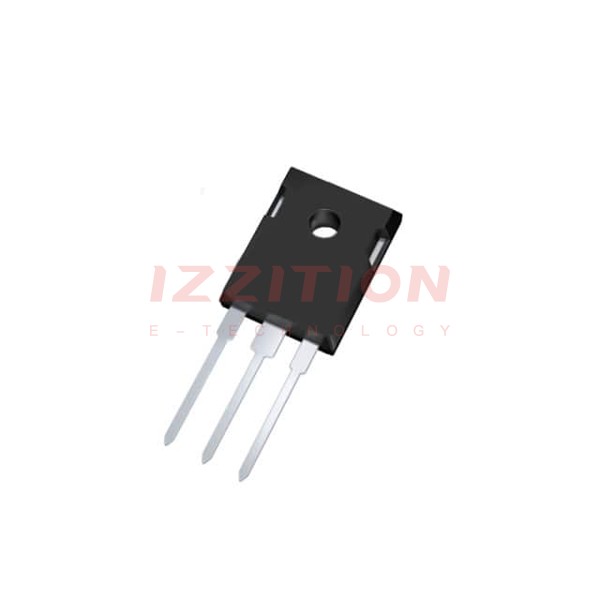

| Part Number | IPAN60R360P7SXKSA1 | IPAW60R360P7SXKSA1 | IPAN70R360P7SXKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 700 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) | 9A (Tc) | 12.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 2.7A, 10V | 360mOhm @ 2.7A, 10V | 360mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 140µA | 4V @ 140µA | 3.5V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V | 13 nC @ 10 V | 16.4 nC @ 10 V |
| Vgs (Max) | ±20V | ±30V | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 555 pF @ 400 V | 555 pF @ 400 V | 517 pF @ 400 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 22W (Tc) | 22W (Tc) | 26.5W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220 Full Pack | PG-TO220 Full Pack | PG-TO220-FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
