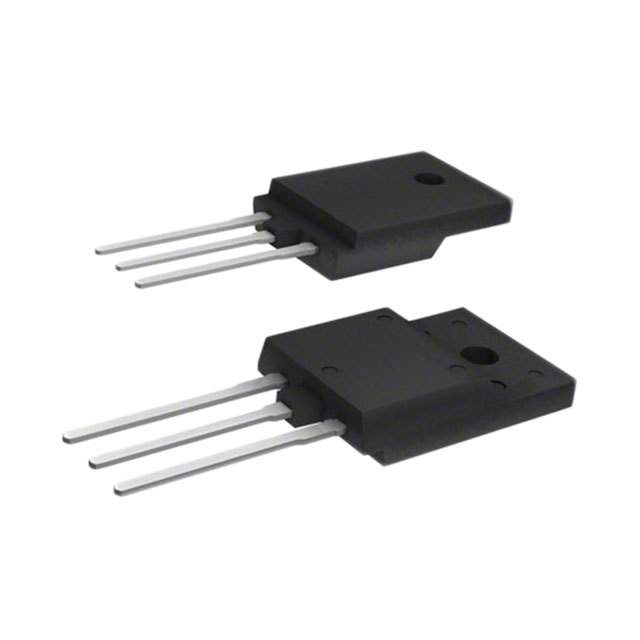

| Part Number | IPA65R380E6XKSA1 | IPA60R380E6XKSA1 | IPA65R280E6XKSA1 | IPA65R380C6XKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 600 V | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 10.6A (Tc) | 10.6A (Tc) | 13.8A (Tc) | 10.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 380mOhm @ 3.2A, 10V | 380mOhm @ 3.8A, 10V | 280mOhm @ 4.4A, 10V | 380mOhm @ 3.2A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 320µA | 3.5V @ 320µA | 3.5V @ 440µA | 3.5V @ 320µA |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V | 32 nC @ 10 V | 45 nC @ 10 V | 39 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 710 pF @ 100 V | 700 pF @ 100 V | 950 pF @ 100 V | 710 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 31W (Tc) | 31W (Tc) | 32W (Tc) | 31W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-FP | PG-TO220-FP | PG-TO220-FP | PG-TO220-3-111 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
