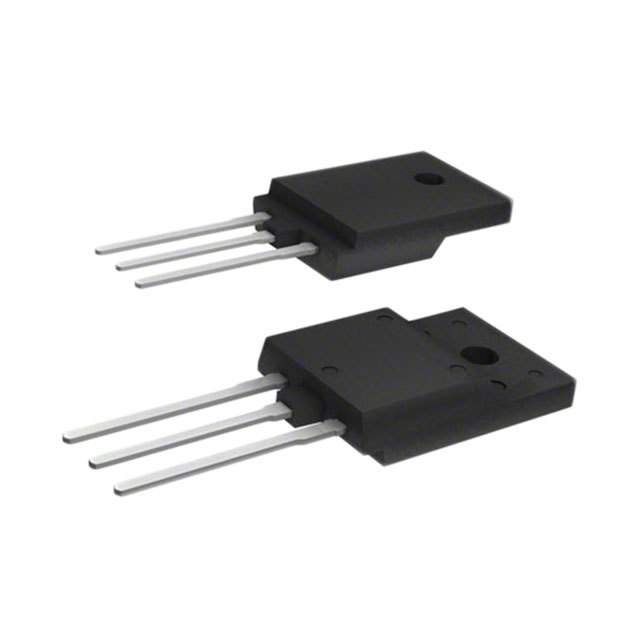

| Part Number | IPA60R160P6XKSA1 | IPA60R190P6XKSA1 | IPA60R160P7XKSA1 | IPA60R160C6XKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Not For New Designs |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 23.8A (Tc) | 20.2A (Tc) | 20A (Tc) | 23.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 9A, 10V | 190mOhm @ 7.6A, 10V | 160mOhm @ 6.3A, 10V | 160mOhm @ 11.3A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 750µA | 4.5V @ 630µ | 4V @ 350µA | 3.5V @ 750µA |
| Gate Charge (Qg) (Max) @ Vgs | 44 nC @ 10 V | 37 nC @ 10 V | 31 nC @ 10 V | 75 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2080 pF @ 100 V | 1750 pF @ 100 V | 1317 pF @ 400 V | 1660 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 34W (Tc) | 34W (Tc) | 26W (Tc) | 34W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-FP | PG-TO220-FP | PG-TO220 Full Pack | PG-TO220-FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
