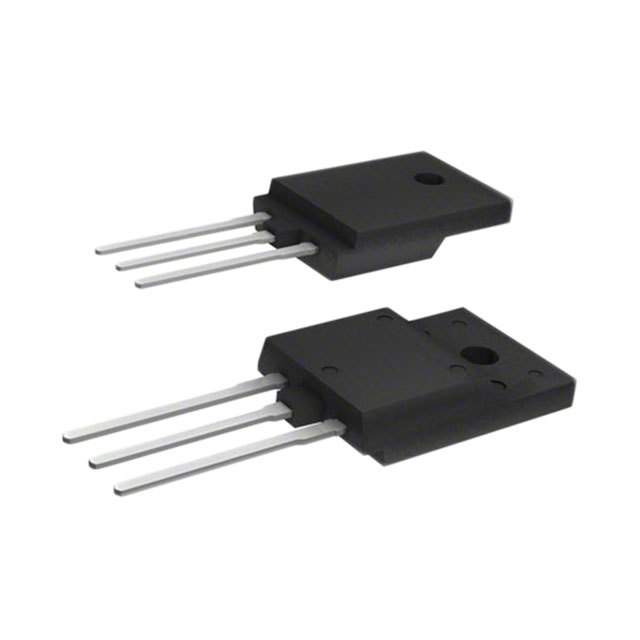

| Part Number | IPA60R099C6XKSA1 | IPA60R099P6XKSA1 | IPA60R099C7XKSA1 | IPA65R099C6XKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 37.9A (Tc) | 37.9A (Tc) | 12A (Tc) | 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 99mOhm @ 18.1A, 10V | 99mOhm @ 14.5A, 10V | 99mOhm @ 9.7A, 10V | 99mOhm @ 12.8A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 1.21mA | 4.5V @ 1.21mA | 4V @ 490µA | 3.5V @ 1.2mA |
| Gate Charge (Qg) (Max) @ Vgs | 119 nC @ 10 V | 70 nC @ 10 V | 42 nC @ 10 V | 127 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2660 pF @ 100 V | 3330 pF @ 100 V | 1819 pF @ 400 V | 2780 pF @ 100 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 35W (Tc) | 34W (Tc) | 33W (Tc) | 35W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO220-FP | PG-TO220-FP | PG-TO220-FP | PG-TO220-3-111 |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
