Please send RFQ , we will respond immediately.

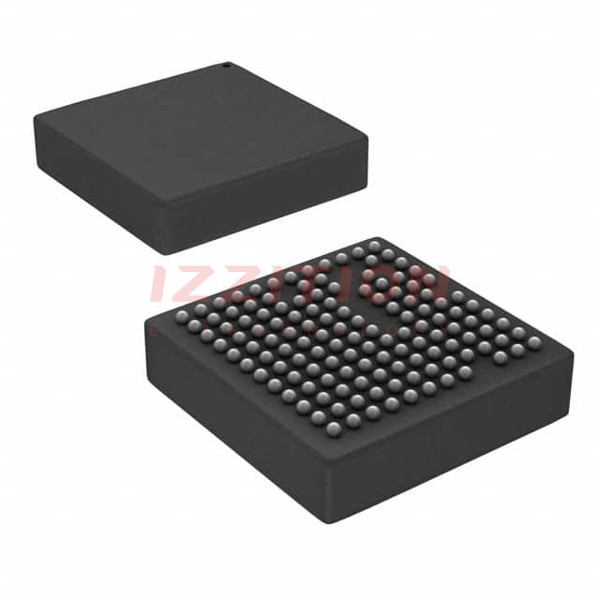

| Part Number | IP2001TR | IP2004TR | IP1001TR |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3.3V |
| Voltage - Input (Max) | 12.6V | 13.2V | 12V |
| Voltage - Output (Min/Fixed) | 0.9V | 0.8V | 0.925V |
| Voltage - Output (Max) | 3.3V | 8V | 2V |
| Current - Output | 20A | 40A | 20A |
| Frequency - Switching | 150kHz ~ 1MHz | 250kHz ~ 1.5MHz | 200kHz, 300kHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 133-BFBGA Power Module | Power Block (LGA) | 218-BFBGA Power Module |
| Supplier Device Package | 133-BGA Power Block (11x11) | LGA (7.7x7.7) | 218-BGA Power Block (14x14) |
