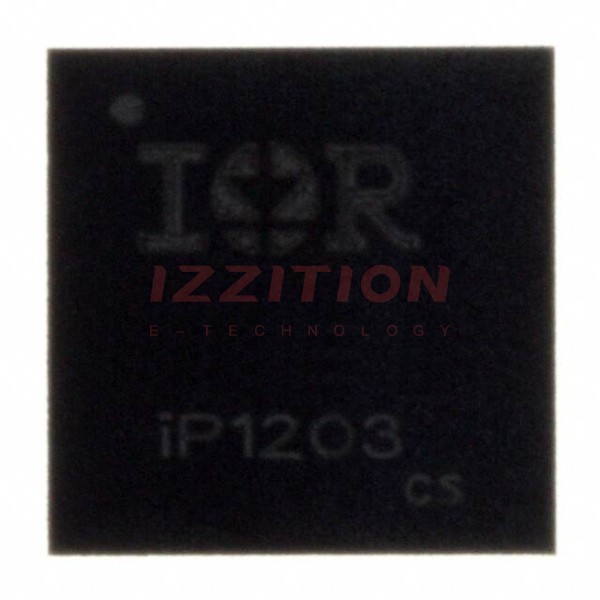

| Part Number | IP1203TRPBF | IP1201TRPBF | IP1202TRPBF |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 or 2 | 1 or 2 |
| Voltage - Input (Min) | 5.5V | 3.14V | 5.5V |
| Voltage - Input (Max) | 13.2V | 5.5V | 13.2V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 8V | 3.3V | 5V |
| Current - Output | 15A | 30A, 15A | 30A, 15A |
| Frequency - Switching | 170kHz ~ 460kHz | 170kHz ~ 460kHz | 170kHz ~ 460kHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -10°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-LGA | 159-BBGA Power Module | 161-BBGA Power Module |
| Supplier Device Package | LGA (9x9) | 159-BGA Power Block (15.5x9.25) | 161-BGA Power Block (15.5x9.25) |
