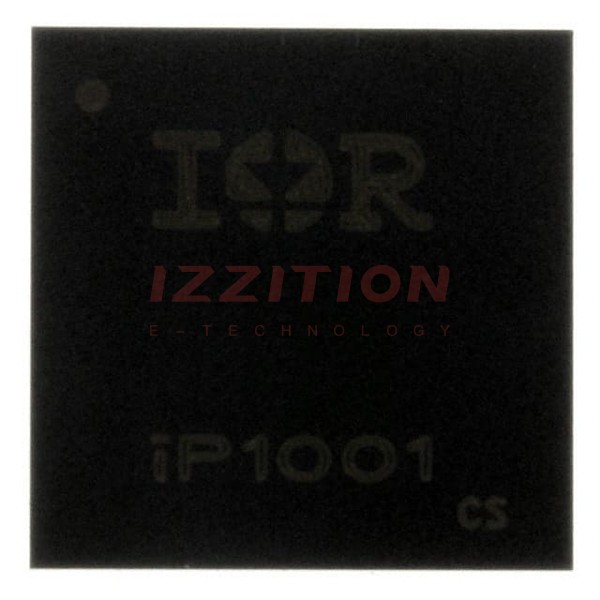

| Part Number | IP1001TR | IP2001TR | IP1201TR |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 or 2 |
| Voltage - Input (Min) | 3.3V | 3V | 3.14V |
| Voltage - Input (Max) | 12V | 12.6V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.925V | 0.9V | 0.8V |
| Voltage - Output (Max) | 2V | 3.3V | 3.3V |
| Current - Output | 20A | 20A | 30A, 15A |
| Frequency - Switching | 200kHz, 300kHz | 150kHz ~ 1MHz | 170kHz ~ 460kHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 218-BFBGA Power Module | 133-BFBGA Power Module | 159-BBGA Power Module |
| Supplier Device Package | 218-BGA Power Block (14x14) | 133-BGA Power Block (11x11) | 159-BGA Power Block (15.5x9.25) |
