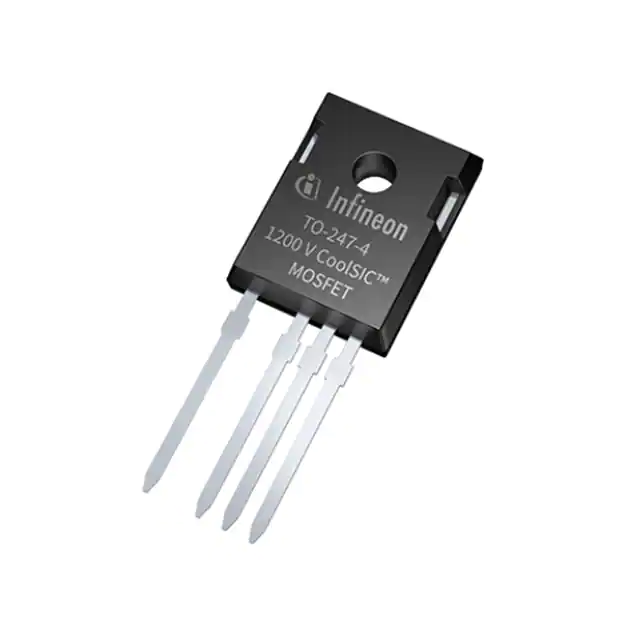

| Part Number | IMZ120R060M1HXKSA1 | IMZ120R090M1HXKSA1 | IMW120R060M1HXKSA1 | IMZ120R030M1HXKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) | 26A (Tc) | 36A (Tc) | 56A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V | 15V, 18V | 15V, 18V | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 78mOhm @ 13A, 18V | 117mOhm @ 8.5A, 18V | 78mOhm @ 13A, 18V | 40mOhm @ 25A, 18V |
| Vgs(th) (Max) @ Id | 5.7V @ 5.6mA | 5.7V @ 3.7mA | 5.7V @ 5.6mA | 5.7V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 18 V | 21 nC @ 18 V | 31 nC @ 18 V | 63 nC @ 18 V |
| Vgs (Max) | +23V, -7V | +23V, -7V | +23V, -7V | +23V, -7V |
| Input Capacitance (Ciss) (Max) @ Vds | 1060 pF @ 800 V | 707 pF @ 800 V | 1060 pF @ 800 V | 2120 pF @ 800 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 150W (Tc) | 115W (Tc) | 150W (Tc) | 227W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PG-TO247-4-1 | PG-TO247-4-1 | PG-TO247-3-41 | PG-TO247-4-1 |
| Package / Case | TO-247-4 | TO-247-4 | TO-247-3 | TO-247-4 |
