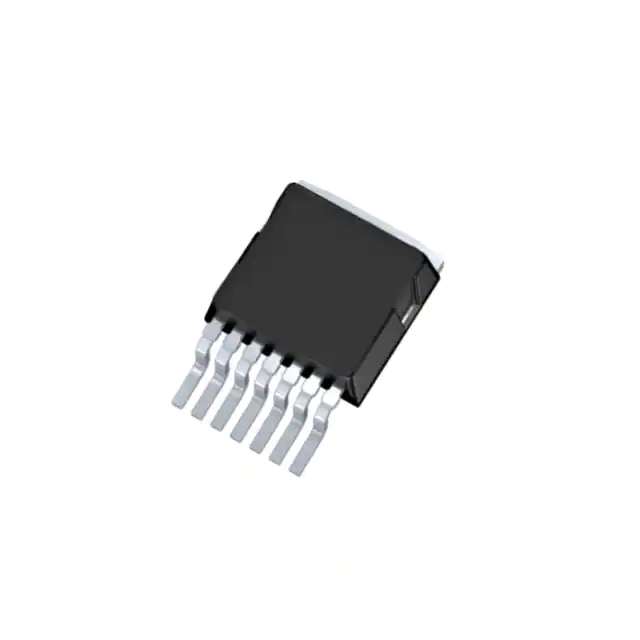

| Part Number | IMBG120R060M1HXTMA1 | IMBG120R090M1HXTMA1 | IMBG120R030M1HXTMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1200 V | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) | 26A (Tc) | 56A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - |
| Rds On (Max) @ Id, Vgs | 83mOhm @ 13A, 18V | 125mOhm @ 8.5A, 18V | 41mOhm @ 25A, 18V |
| Vgs(th) (Max) @ Id | 5.7V @ 5.6mA | 5.7V @ 3.7mA | 5.7V @ 11.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 34 nC @ 18 V | 23 nC @ 18 V | 63 nC @ 18 V |
| Vgs (Max) | +18V, -15V | +18V, -15V | +18V, -15V |
| Input Capacitance (Ciss) (Max) @ Vds | 1145 pF @ 800 V | 763 pF @ 800 V | 2290 pF @ 800 V |
| FET Feature | Standard | Standard | Standard |
| Power Dissipation (Max) | 181W (Tc) | 136W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | PG-TO263-7-12 | PG-TO263-7-12 | PG-TO263-7-12 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
