| Part Number | ILD1150XUMA1 | ILD8150XUMA1 | ILD6150XUMA1 | ILD1151XUMA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Active | Obsolete |
| Type | DC DC Controller | DC DC Regulator | DC DC Regulator | DC DC Controller |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Step-Down (Buck) | Step-Down (Buck) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No | Yes | Yes | No |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 4.75V | 8V | 4.5V | 4.5V |
| Voltage - Supply (Max) | 45V | 80V | 60V | 45V |
| Voltage - Output | - | - | - | - |
| Current - Output / Channel | - | 1.5A | 1.5A | - |
| Frequency | 100kHz ~ 500kHz | 2MHz | 1MHz | 100kHz ~ 500kHz |
| Dimming | PWM | PWM | Analog, PWM | Analog, PWM |
| Applications | Lighting | LED Lighting | Lighting | Lighting |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

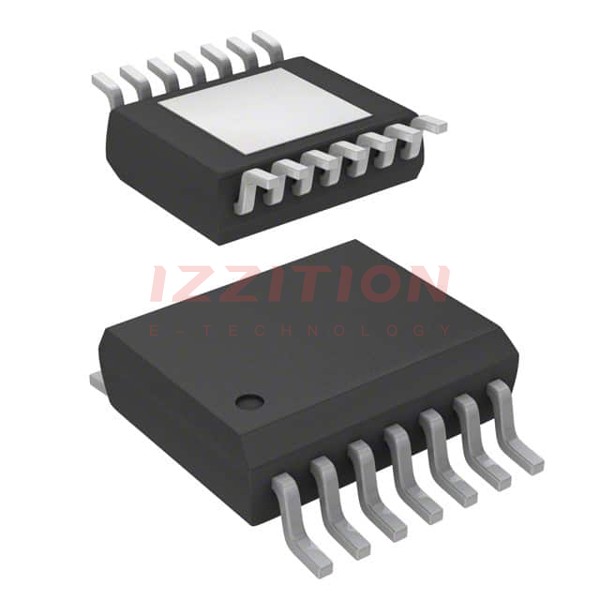

| Package / Case | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-SSOP-14-3 | PG-DSO-8 | PG-DSO-8 | PG-SSOP-14-EP |
