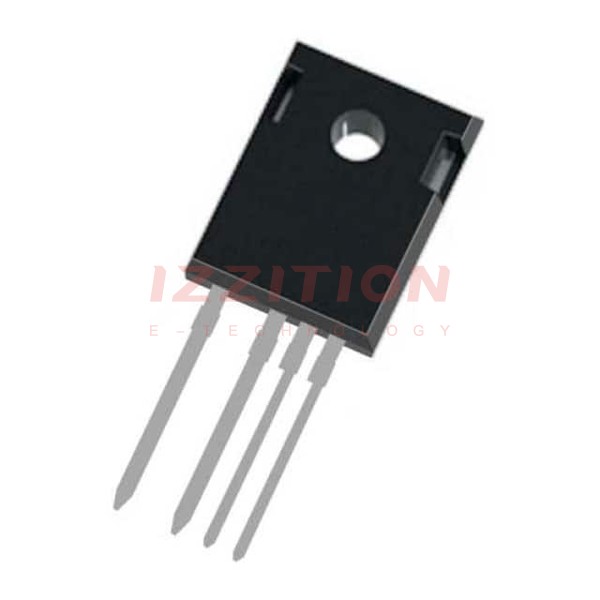

| Part Number | IKZA50N65RH5XKSA1 | IKZA40N65RH5XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 80 A | 74 A |
| Current - Collector Pulsed (Icm) | 200 A | 60 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A | 2.1V @ 15V, 40A |
| Power - Max | 305 W | 250 W |
| Switching Energy | 200µJ (on), 180µJ (off) | 140µJ (on), 120µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 120 nC | 95 nC |
| Td (on/off) @ 25°C | 21ns/180ns | 17ns/165ns |
| Test Condition | 400V, 25A, 12Ohm, 15V | 400V, 20A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-4 | TO-247-4 |
| Supplier Device Package | PG-TO247-4-3 | PG-TO247-4-3 |
