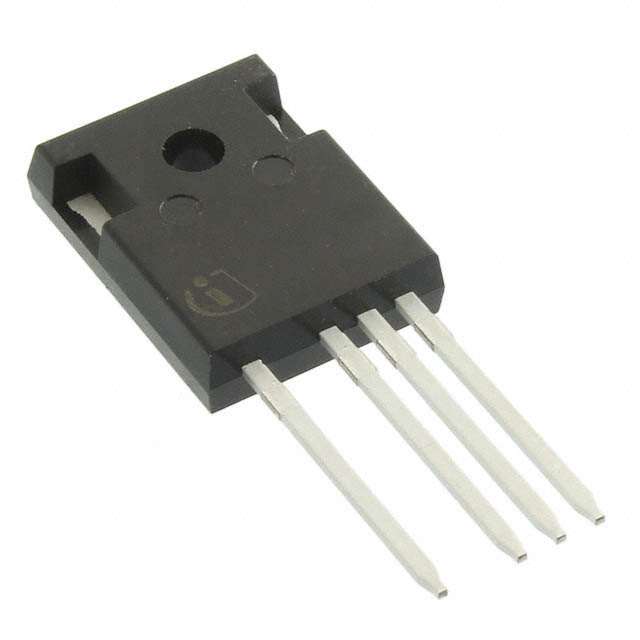

| Part Number | IKZ75N65ES5XKSA1 | IKW75N65ES5XKSA1 | IKZ75N65EH5XKSA1 | IKZ75N65EL5XKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench | Trench | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A | 90 A | 100 A |
| Current - Collector Pulsed (Icm) | 300 A | 300 A | 300 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 75A | 1.75V @ 15V, 75A | 2.1V @ 15V, 75A | 1.35V @ 15V, 75A |
| Power - Max | 395 W | 395 W | 395 W | 536 W |
| Switching Energy | 1.3mJ (on), 1.5mJ (off) | 2.4mJ (on), 950µJ (off) | 680µJ (on), 430µJ (off) | 1.57mJ (on), 3.2mJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 164 nC | 164 nC | 166 nC | 436 nC |
| Td (on/off) @ 25°C | 46ns/405ns | 40ns/144ns | 26ns/347ns | 120ns/275ns |
| Test Condition | 400V, 15A, 22.3Ohm, 15V | 400V, 75A, 18Ohm, 15V | 400V, 37.5A, 10Ohm, 15V | 400V, 75A, 23Ohm, 15V |
| Reverse Recovery Time (trr) | 72 ns | 85 ns | 58 ns | 59 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-4 | TO-247-3 | TO-247-4 | TO-247-4 |
| Supplier Device Package | PG-TO247-4 | PG-TO247-3 | PG-TO247-4 | PG-TO247-4 |
