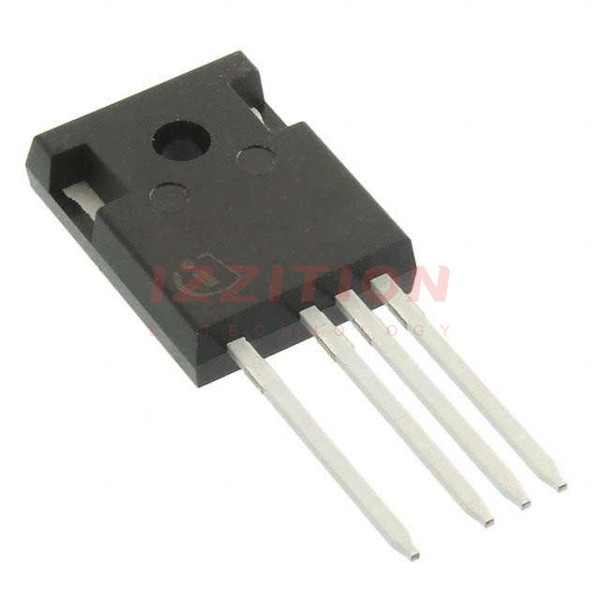

| Part Number | IKY75N120CH3XKSA1 | IKQ75N120CH3XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 150 A | 150 A |
| Current - Collector Pulsed (Icm) | 300 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 75A | 2.35V @ 15V, 75A |
| Power - Max | 938 W | 938 W |
| Switching Energy | 3.4mJ (on), 2.9mJ (off) | 6.4mJ (on), 2.8mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 370 nC | 370 nC |
| Td (on/off) @ 25°C | 38ns/303ns | 34ns/282ns |
| Test Condition | 600V, 75A, 6Ohm, 15V | 600V, 75A, 6Ohm, 15V |
| Reverse Recovery Time (trr) | 292 ns | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-4 | TO-247-3 |
| Supplier Device Package | PG-TO247-4 | PG-TO247-3-46 |
