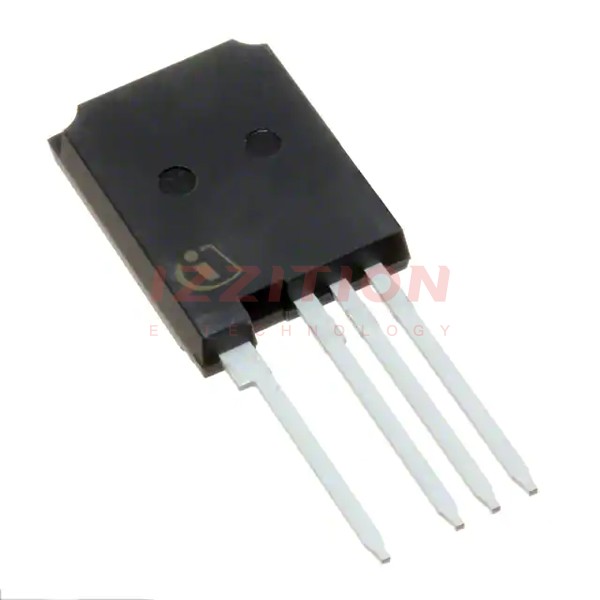

| Part Number | IKY40N120CH3XKSA1 | IKY50N120CH3XKSA1 | IKQ40N120CH3XKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 80 A | 100 A | 80 A |
| Current - Collector Pulsed (Icm) | 160 A | 200 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 40A | 2.35V @ 15V, 50A | 2.35V @ 15V, 40A |
| Power - Max | 500 W | 652 W | 500 W |
| Switching Energy | 2.18mJ (on), 1.3mJ (off) | 2.3mJ (on), 1.9mJ (off) | 3.3mJ (on), 1.3mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 190 nC | 235 nC | 190 nC |
| Td (on/off) @ 25°C | 30ns/280ns | 32ns/296ns | 30ns/300ns |
| Test Condition | 600V, 40A, 12Ohm, 15V | 600V, 50A, 10Ohm, 15V | 400V, 40A, 12Ohm, 15V |
| Reverse Recovery Time (trr) | 350 ns | 255 ns | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-4 | TO-247-4 | TO-247-3 |
| Supplier Device Package | PG-TO247-4 | PG-TO247-4 | PG-TO247-3-46 |
