Infineon Technologies-IKWH30N65WR6XKSA1 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	67 A
Current - Collector Pulsed (Icm):	90 A
Vce(on) (Max) @ Vge, Ic:	1.75V @ 15V, 30A
Power - Max:	136 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	97 nC
Td (on/off) @ 25°C:	-
Test Condition:	-
Reverse Recovery Time (trr):	-
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	PG-TO247-3-32

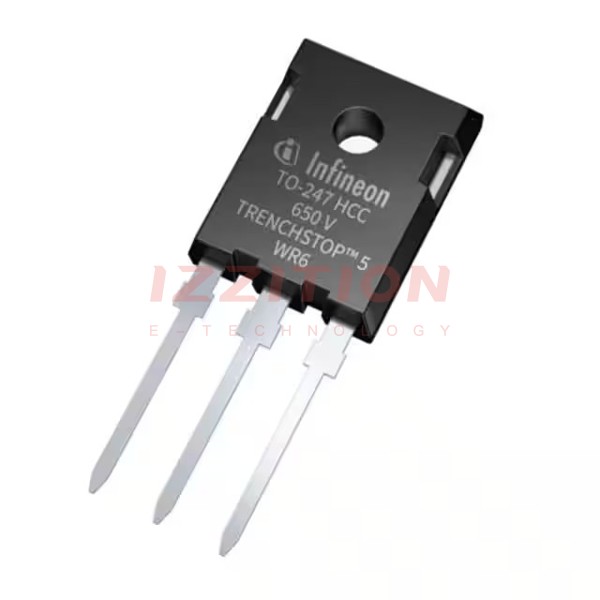

Infineon Technologies IKWH30N65WR6XKSA1
