Infineon Technologies-IKW50N120CS7XKSA1 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	82 A
Current - Collector Pulsed (Icm):	150 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 50A
Power - Max:	428 W
Switching Energy:	2.8mJ (on), 2.2mJ (off)
Input Type:	Standard
Gate Charge:	290 nC
Td (on/off) @ 25°C:	29ns/170ns
Test Condition:	600V, 50A, 2.3Ohm, 15V
Reverse Recovery Time (trr):	165 ns
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	PG-TO247-3

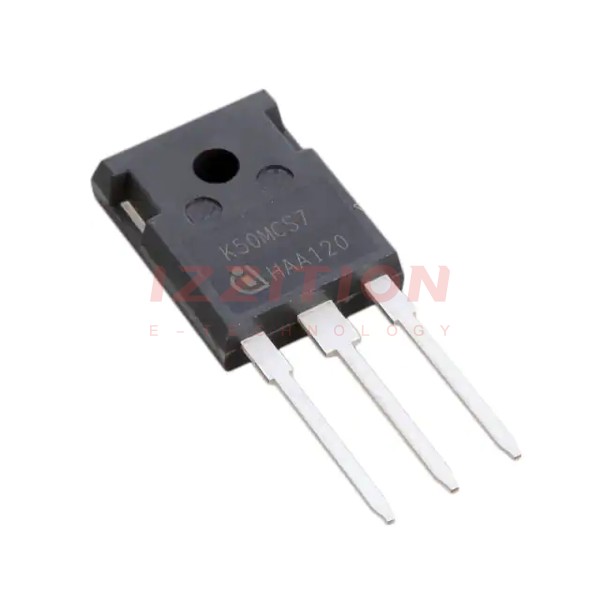

Infineon Technologies IKW50N120CS7XKSA1
