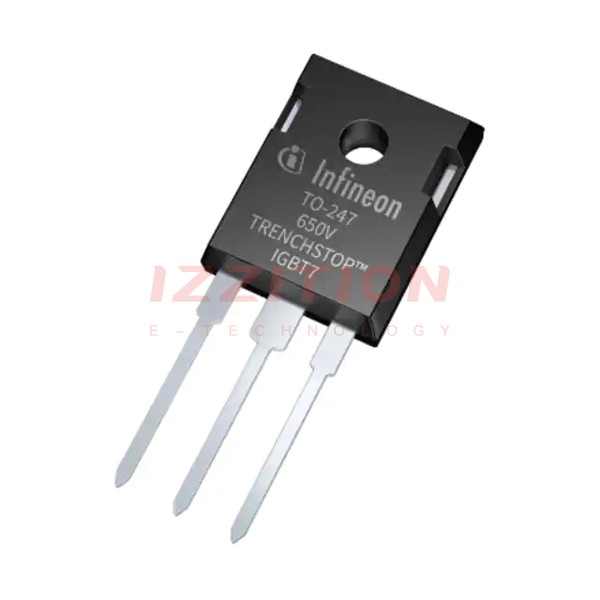

| Part Number | IKW40N65ET7XKSA1 | IKW50N65ET7XKSA1 | IKW20N65ET7XKSA1 | IKW30N65ET7XKSA1 |
|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 76 A | 50 A | 40 A | 30 A |
| Current - Collector Pulsed (Icm) | 120 A | 150 A | 60 A | 90 A |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 15V, 40A | 1.65V @ 15V, 50A | 1.65V @ 15V, 20A | 1.65V @ 15V, 30A |
| Power - Max | 230.8 W | 273 W | 136 W | 188 W |
| Switching Energy | 1.05mJ (on), 590µJ (off) | 1.2mJ (on), 850µJ (off) | 360µJ (on), 360µJ (off) | 590µJ (on), 500µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 235 nC | 290 nC | 128 nC | 180 nC |
| Td (on/off) @ 25°C | 20ns/310ns | 26ns/350ns | 16ns/210ns | 20ns/245ns |
| Test Condition | 400V, 40A, 10Ohm, 15V | 400V, 50A, 9Ohm, 15V | 400V, 20A, 12Ohm, 15V | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 85 ns | 93 ns | 70 ns | 80 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | PG-TO247-3 | PG-TO247-3 | PG-TO247-3 | PG-TO247-3 |
