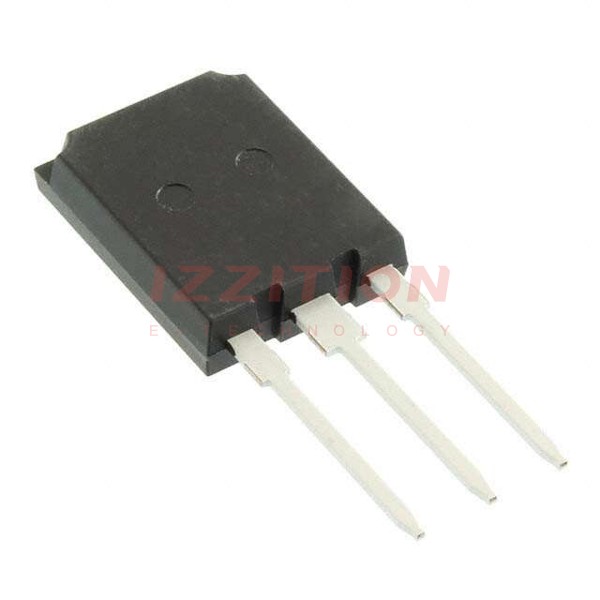

| Part Number | IKQ75N120CS6XKSA1 | IKY75N120CS6XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 150 A | 150 A |
| Current - Collector Pulsed (Icm) | 300 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 75A | 2.15V @ 15V, 75A |
| Power - Max | 880 W | 880 W |
| Switching Energy | 5.15mJ (on), 2.95mJ (off) | 2.2mJ (on), 2.95mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 530 nC | 530 nC |
| Td (on/off) @ 25°C | 34ns/300ns | 32ns/300ns |
| Test Condition | 600V, 75A, 4Ohm, 15V | 600V, 75A, 4Ohm, 15V |
| Reverse Recovery Time (trr) | 440 ns | 205 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-4 |
| Supplier Device Package | PG-TO247-3-46 | PG-TO247-4-2 |
