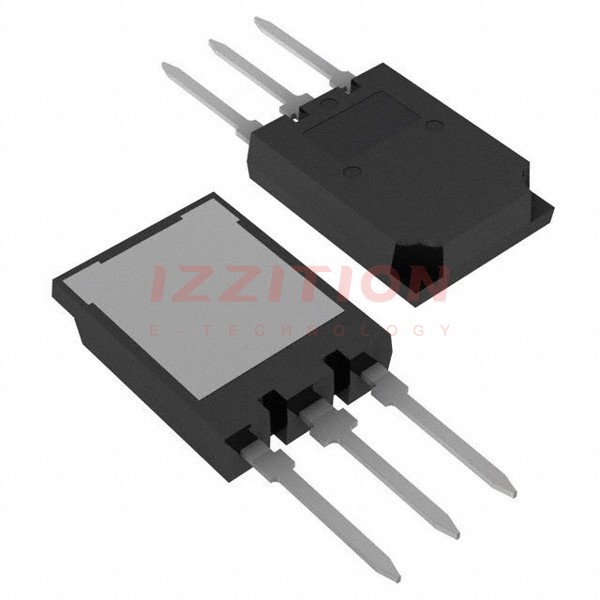

| Part Number | IKQ40N120CT2XKSA1 | IKQ50N120CT2XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 80 A | 100 A |
| Current - Collector Pulsed (Icm) | 160 A | 200 A |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 40A | 2.15V @ 15V, 50A |
| Power - Max | 500 W | 652 W |
| Switching Energy | 3.1mJ (on), 2.9mJ (off) | 3.8mJ (on), 3.3mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 190 nC | 235 nC |
| Td (on/off) @ 25°C | 32ns/328ns | 34ns/312ns |
| Test Condition | 600V, 40A, 12Ohm, 15V | 400V, 50A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | PG-TO247-3-46 | PG-TO247-3-46 |
