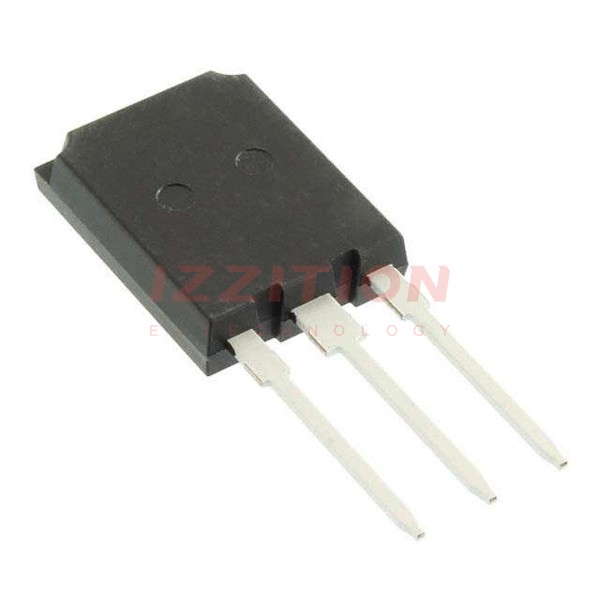

| Part Number | IKQ100N60TAXKSA1 | IKQ100N60TXKSA1 | IKQ120N60TAXKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Active | Obsolete |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 160 A | 160 A | 160 A |
| Current - Collector Pulsed (Icm) | 400 A | 400 A | 480 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 100A | 2V @ 15V, 100A | 2V @ 15V, 120A |
| Power - Max | 714 W | 714 W | 833 W |
| Switching Energy | 3.1mJ (on), 2.5mJ (off) | 3.1mJ (on), 2.5mJ (off) | 4.1mJ (on), 2.8mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 610 nC | 610 nC | 772 nC |
| Td (on/off) @ 25°C | 30ns/290ns | 30ns/290ns | 33ns/310ns |
| Test Condition | 400V, 100A, 3.6Ohm, 15V | 400V, 100A, 3.6Ohm, 15V | 400V, 120A, 3Ohm, 15V |
| Reverse Recovery Time (trr) | 225 ns | 230 ns | 280 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | PG-TO247-3-46 | PG-TO247-3-46 | PG-TO247-3-46 |
