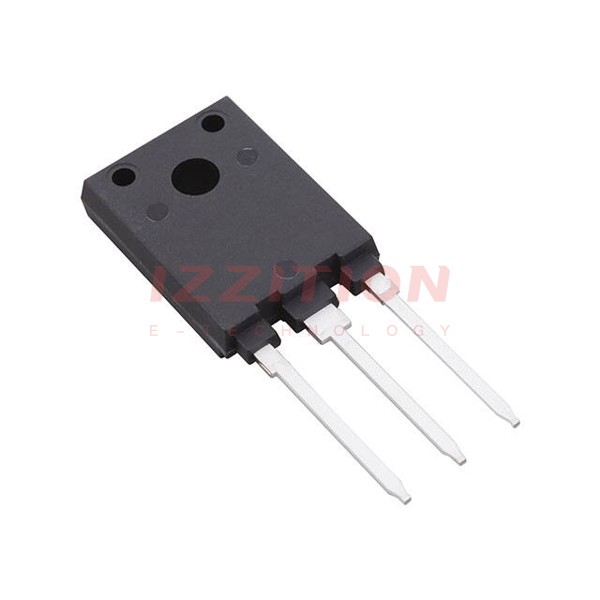

| Part Number | IKFW75N65EH5XKSA1 | IKFW75N65ES5XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 80 A | 80 A |
| Current - Collector Pulsed (Icm) | 240 A | 240 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 60A | 1.7V @ 15V, 60A |
| Power - Max | 148 W | 148 W |
| Switching Energy | 1.8mJ (on), 600µJ (off) | 1.48mJ (on), 660µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 144 nC | 144 nC |
| Td (on/off) @ 25°C | 30ns/206ns | 24ns/152ns |
| Test Condition | 400V, 60A, 12Ohm, 15V | 400V, 60A, 8Ohm, 15V |
| Reverse Recovery Time (trr) | 75 ns | 71 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | PG-HSIP247-3-2 | PG-HSIP247-3-2 |
