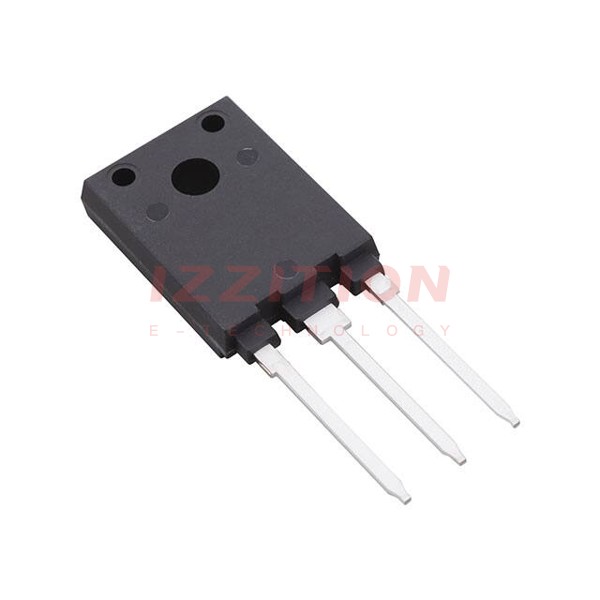

| Part Number | IKFW60N65ES5XKSA1 | IKFW40N65ES5XKSA1 | IKFW50N65ES5XKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 77 A | 60 A | 74 A |
| Current - Collector Pulsed (Icm) | 200 A | 120 A | 160 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 50A | 1.7V @ 15V, 30A | 1.7V @ 15V, 40A |
| Power - Max | 138 W | 106 W | 127 W |
| Switching Energy | 1.23mJ (on), 550µJ (off) | 560µJ (on), 320µJ (off) | 860µJ (on), 400µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 120 nC | 70 nC | 95 nC |
| Td (on/off) @ 25°C | 20ns/127ns | 17ns/124ns | 19ns/130ns |
| Test Condition | 400V, 50A, 8.2Ohm, 15V | 400V, 30A, 13Ohm, 15V | 400V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 77 ns | 75 ns | 69 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | PG-HSIP247-3-2 | PG-HSIP247-3-2 | PG-HSIP247-3-2 |
