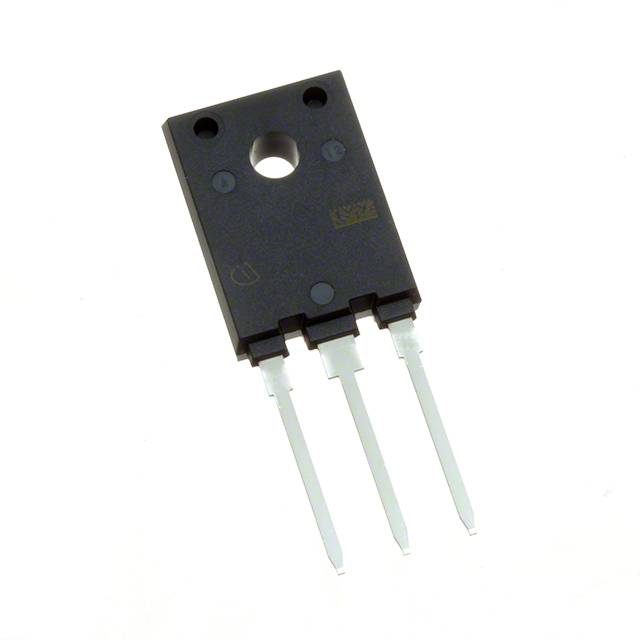

| Part Number | IKFW60N60DH3EXKSA1 | IKFW40N60DH3EXKSA1 | IKFW50N60DH3EXKSA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active |
| IGBT Type | Trench Field Stop | Trench Field Stop | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 53 A | 34 A | 40 A |
| Current - Collector Pulsed (Icm) | 150 A | 90 A | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 50A | 2.7V @ 15V, 30A | 2.7V @ 15V, 40A |
| Power - Max | 141 W | 111 W | 130 W |
| Switching Energy | 1.57mJ (on), 720µJ (off) | 870µJ (on), 360µJ (off) | 1.28mJ (on), 560µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 210 nC | 107 nC | 160 nC |
| Td (on/off) @ 25°C | 23ns/170ns | 18ns/144ns | 21ns/174ns |
| Test Condition | 400V, 50A, 7Ohm, 15V | 400V, 30A, 10Ohm, 15V | 400V, 40A, 8Ohm, 15V |
| Reverse Recovery Time (trr) | 68 ns | 72 ns | 64 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | PG-TO247-3-AI | PG-TO247-3-AI | PG-TO247-3-AI |
