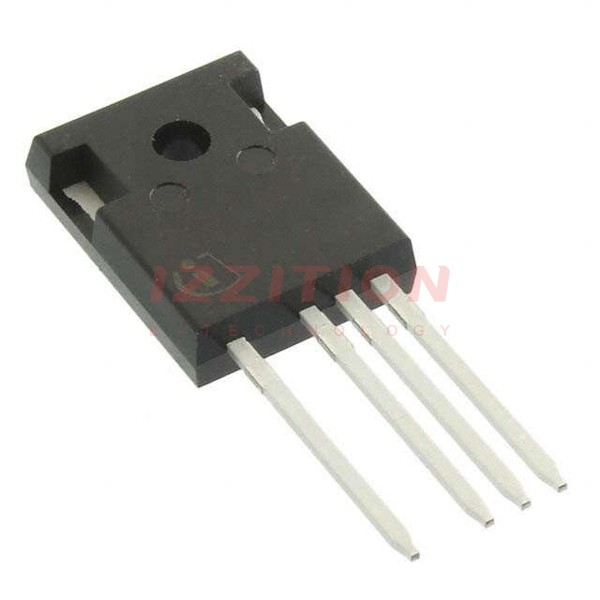

| Part Number | IGZ75N65H5XKSA1 | IGW75N65H5XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 119 A | 120 A |
| Current - Collector Pulsed (Icm) | 300 A | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | 2.1V @ 15V, 75A |
| Power - Max | 395 W | 395 W |
| Switching Energy | 680µJ (on), 430µJ (off) | 2.25mJ (on), 950µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 166 nC | 160 nC |
| Td (on/off) @ 25°C | 26ns/347ns | 28ns/174ns |
| Test Condition | 400V, 37.5A, 10Ohm, 15V | 400V, 75A, 8Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -40°C ~ 175°C (TJ) | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-4 | TO-247-3 |
| Supplier Device Package | PG-TO247-4 | PG-TO247-3 |
