Please send RFQ , we will respond immediately.

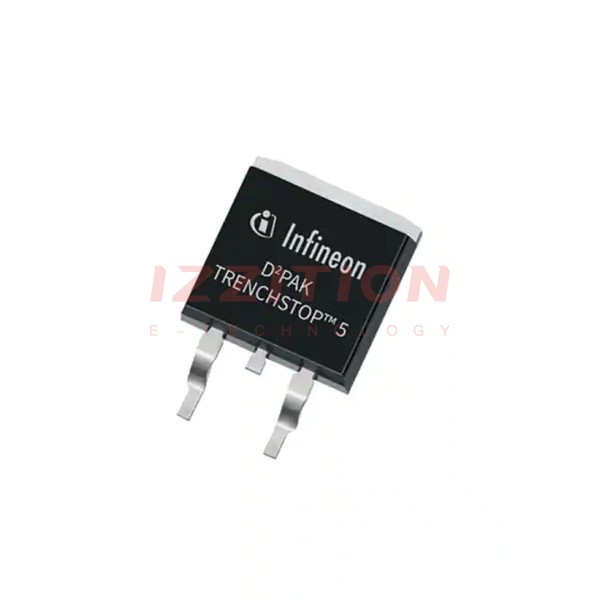

| Part Number | IGB20N65S5ATMA1 | IGB50N65S5ATMA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| IGBT Type | - | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | - | 650 V |
| Current - Collector (Ic) (Max) | - | 80 A |
| Current - Collector Pulsed (Icm) | - | 200 A |
| Vce(on) (Max) @ Vge, Ic | - | 1.7V @ 15V, 50A |
| Power - Max | - | 270 W |
| Switching Energy | - | 1.23mJ (on), 740µJ (off) |
| Input Type | - | Standard |
| Gate Charge | - | 120 nC |
| Td (on/off) @ 25°C | - | 20ns/139ns |
| Test Condition | - | 400V, 50A, 8.2Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | - | -40°C ~ 175°C (TJ) |
| Mounting Type | - | Surface Mount |
| Package / Case | - | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | - | PG-TO263-3 |
