| Part Number | IFX21004TNV51AKSA1 | IFX21003TNV51AKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Obsolete | Obsolete |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 2 | 2 |
| Voltage - Input (Max) | 40V | 40V |
| Voltage - Output (Min/Fixed) | 5V, 15V | 5V, 15V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 10V @ 100mA, 6V @ 30mA | 10V @ 100mA, 6V @ 30mA |
| Current - Output | 100mA, 30mA | 100mA, 30mA |
| Current - Quiescent (Iq) | 1 mA | 1 mA |
| Current - Supply (Max) | 3.5 mA | 3.5 mA |
| PSRR | 55dB (100Hz), 50dB (100Hz) | 55dB (100Hz), 50dB (100Hz) |
| Control Features | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole |

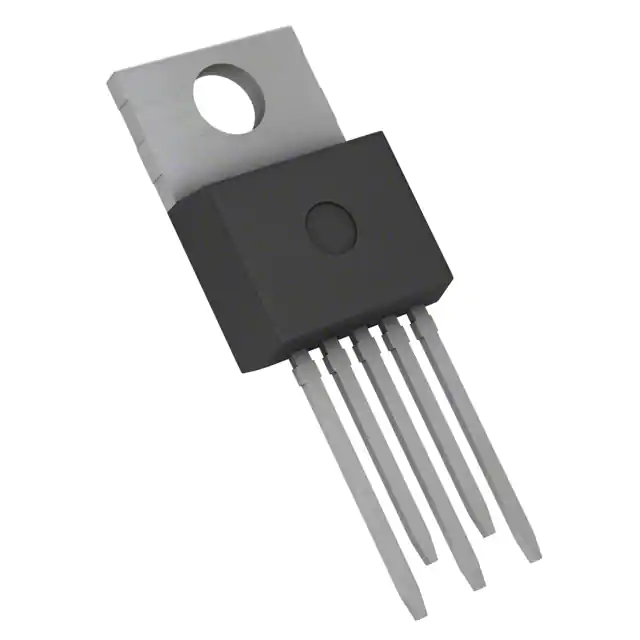

| Package / Case | TO-220-5 | TO-220-5 |
| Supplier Device Package | PG-TO220-5 | PG-TO220-5 |
