Infineon Technologies-IDP30E120XKSA1 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	50A (DC)
Voltage - Forward (Vf) (Max) @ If:	2.15 V @ 30 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	243 ns
Current - Reverse Leakage @ Vr:	100 µA @ 1200 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	PG-TO220-2-2
Operating Temperature - Junction:	-55°C ~ 150°C

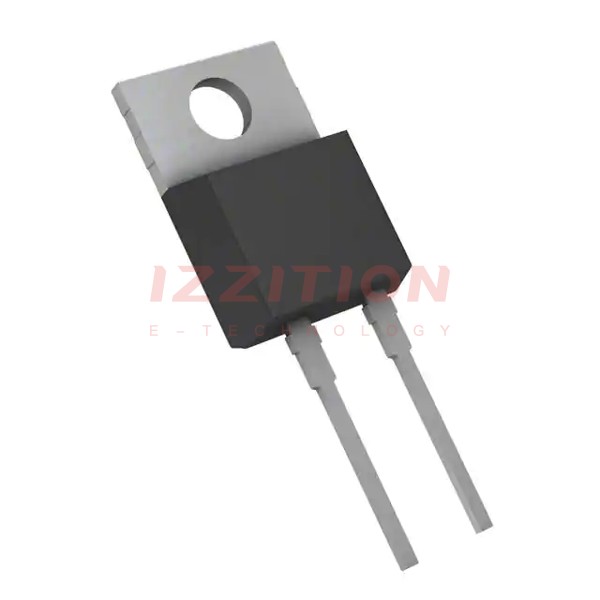

Infineon Technologies IDP30E120XKSA1
