| Part Number | IDP18E120XKSA1 | IDP12E120XKSA1 |
|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V | 1200 V |
| Current - Average Rectified (Io) | 31A (DC) | 28A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 2.15 V @ 18 A | 2.15 V @ 12 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 195 ns | 150 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V | 100 µA @ 1200 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Through Hole |

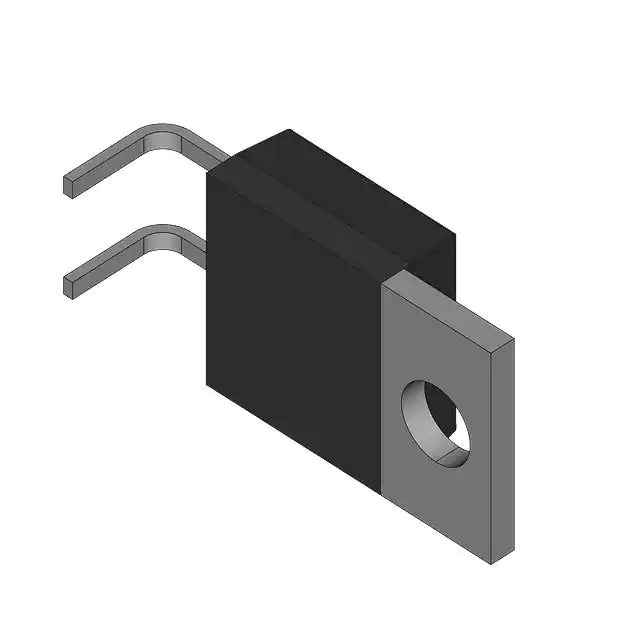

| Package / Case | TO-220-2 | TO-220-2 |
| Supplier Device Package | PG-TO220-2-2 | PG-TO220-2-2 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C |
