Infineon Technologies-IDH15S120A - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	15A (DC)
Voltage - Forward (Vf) (Max) @ If:	1.8 V @ 15 A
Speed:	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr):	0 ns
Current - Reverse Leakage @ Vr:	360 µA @ 1.2 V
Capacitance @ Vr, F:	750pF @ 1V, 1MHz
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	PG-TO220-2-2
Operating Temperature - Junction:	-55°C ~ 175°C

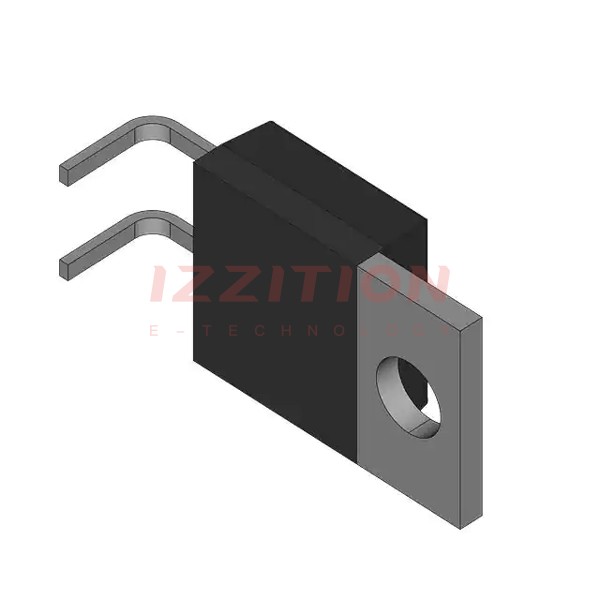

Infineon Technologies IDH15S120A
