| Part Number | IDH09SG60CXKSA2 | IDH03SG60CXKSA2 | IDH04SG60CXKSA2 | IDH05SG60CXKSA2 | IDH06SG60CXKSA2 | IDH08SG60CXKSA2 | IDH09SG60CXKSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 9A (DC) | 3A (DC) | 4A (DC) | 5A (DC) | 6A (DC) | 8A (DC) | 9A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 2.1 V @ 9 A | 2.3 V @ 3 A | 2.3 V @ 4 A | 2.3 V @ 5 A | 2.3 V @ 6 A | 2.1 V @ 8 A | 2.1 V @ 9 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 80 µA @ 600 V | 15 µA @ 600 V | 25 µA @ 600 V | 30 µA @ 600 V | 50 µA @ 600 V | 70 µA @ 600 V | 80 µA @ 600 V |
| Capacitance @ Vr, F | 280pF @ 1V, 1MHz | 60pF @ 1V, 1MHz | 80pF @ 1V, 1MHz | 110pF @ 1V, 1MHz | 130pF @ 1V, 1MHz | 240pF @ 1V, 1MHz | 280pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

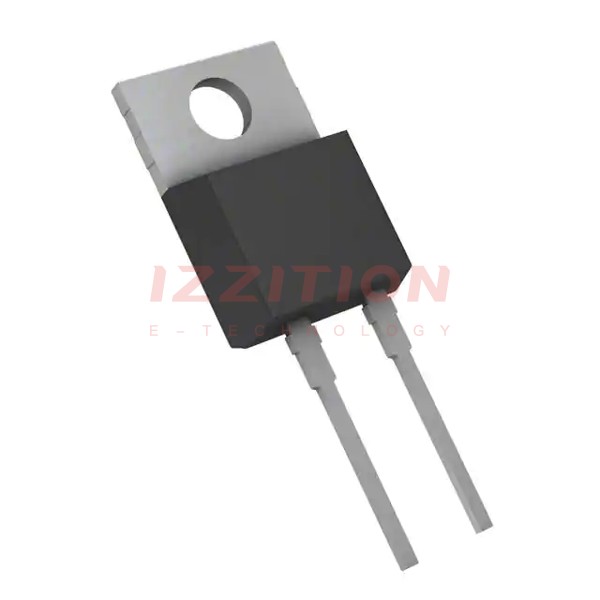

| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | PG-TO220-2-1 | PG-TO220-2-1 | PG-TO220-2-1 | PG-TO220-2-1 | PG-TO220-2-1 | PG-TO220-2-1 | PG-TO220-2-2 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
