| Part Number | IDH05G65C5XKSA1 | IDH05G65C5XKSA2 | IDH08G65C5XKSA1 | IDH06G65C5XKSA1 | IDH09G65C5XKSA1 | IDH02G65C5XKSA1 | IDH04G65C5XKSA1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Diode Type | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V | 650 V | 650 V | 650 V | 650 V | 650 V | 650 V |
| Current - Average Rectified (Io) | 5A (DC) | 5A (DC) | 8A (DC) | 6A (DC) | 9A (DC) | 2A (DC) | 4A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 5 A | 1.7 V @ 5 A | 1.7 V @ 8 A | 1.7 V @ 6 A | 1.7 V @ 9 A | 1.7 V @ 2 A | 1.7 V @ 4 A |
| Speed | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns | 0 ns |
| Current - Reverse Leakage @ Vr | 170 µA @ 650 V | 90 µA @ 650 V | 280 µA @ 650 V | 210 µA @ 650 V | 310 µA @ 650 V | 35 µA @ 650 V | 140 µA @ 650 V |
| Capacitance @ Vr, F | 160pF @ 1V, 1MHz | 160pF @ 1V, 1MHz | 250pF @ 1V, 1MHz | 190pF @ 1V, 1MHz | 270pF @ 1V, 1MHz | 70pF @ 1V, 1MHz | 130pF @ 1V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

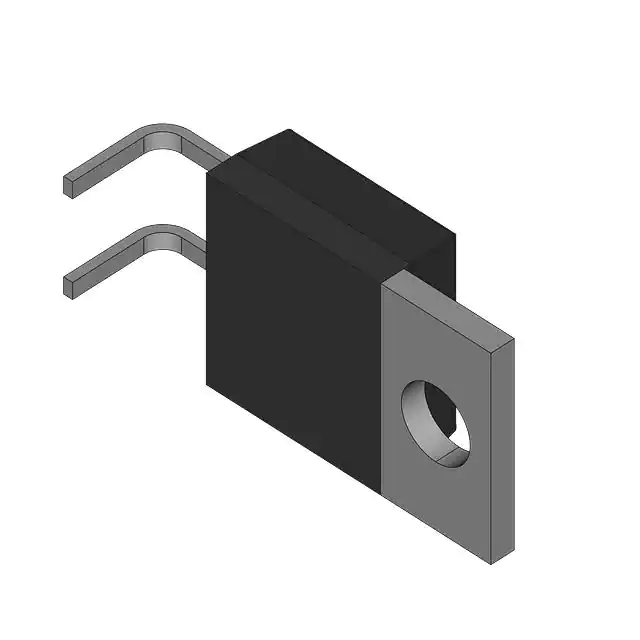

| Package / Case | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 | TO-220-2 |
| Supplier Device Package | PG-TO220-2-2 | PG-TO220-2 | PG-TO220-2-2 | PG-TO220-2-2 | PG-TO220-2-2 | PG-TO220-2-1 | PG-TO220-2-2 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
