Infineon Technologies-ICE5QR2270AZ - PMIC - AC DC Converters, Offline Switchers Product Specifications and Latest Quotes

Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	16 V
Voltage - Supply (Vcc/Vdd):	10V ~ 25.5V
Duty Cycle:	-
Frequency - Switching:	-
Power (Watts):	41 W
Fault Protection:	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Control Features:	Frequency Control, Soft Start
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package:	PG-DIP-7
Mounting Type:	Through Hole

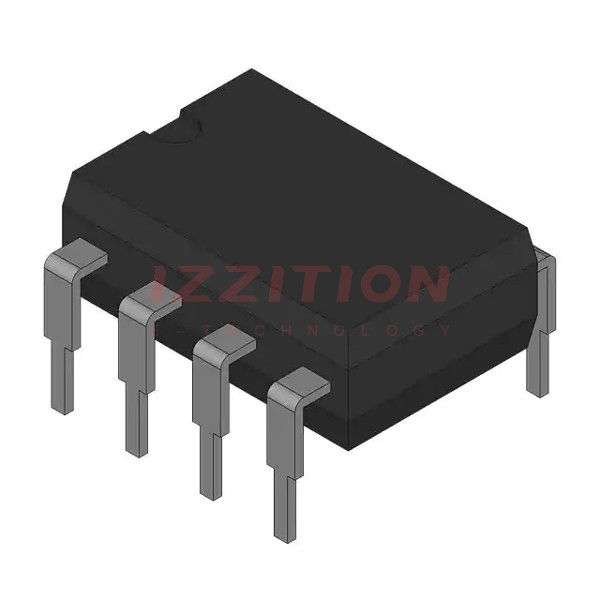

Infineon Technologies ICE5QR2270AZ
