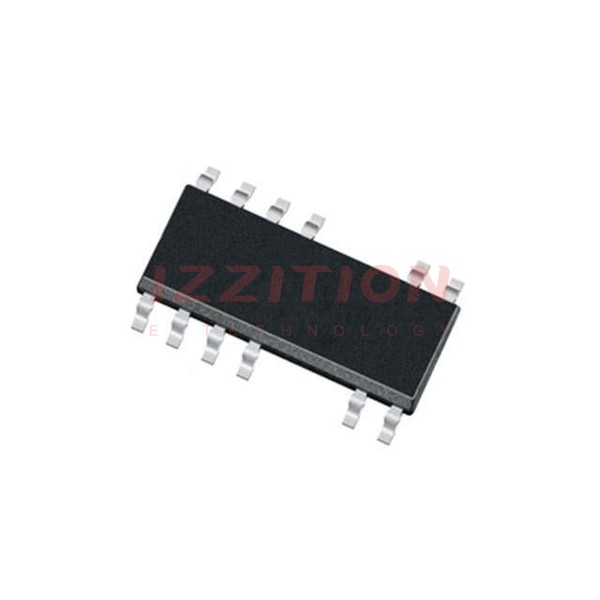

| Part Number | ICE5QR0680AGXUMA1 | ICE5QR1680AGXUMA1 | ICE5AR0680AGXUMA1 |
|---|---|---|---|
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Product Status | Not For New Designs | Not For New Designs | Active |
| Output Isolation | Isolated | Isolated | Non-Isolated |
| Internal Switch(s) | Yes | Yes | Yes |
| Voltage - Breakdown | 800V | 800V | 800V |
| Topology | Flyback | Flyback | Flyback |
| Voltage - Start Up | 16 V | 16 V | - |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 27V | 10V ~ 27V | 10V ~ 25.5V |
| Duty Cycle | - | - | 75% |
| Frequency - Switching | - | - | 100kHz |
| Power (Watts) | 77 W | 50 W | 40 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage |
| Control Features | - | - | EN, Soft Start, Sync |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width), 12 Leads | 16-SOIC (0.154", 3.90mm Width), 12 Leads | 16-SOIC (0.154", 3.90mm Width), 12 Leads |
| Supplier Device Package | PG-DSO-12-21 | PG-DSO-12-21 | PG-DSO-12-21 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
