Infineon Technologies-ICE5GR4780AGXUMA1 - PMIC - AC DC Converters, Offline Switchers Product Specifications and Latest Quotes

Output Isolation:	Non-Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	800V
Topology:	Flyback
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	10V ~ 25.5V
Duty Cycle:	75%
Frequency - Switching:	125kHz
Power (Watts):	15 W
Fault Protection:	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Control Features:	EN, Soft Start, Sync
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	16-SOIC (0.154", 3.90mm Width), 12 Leads
Supplier Device Package:	PG-DSO-12-21
Mounting Type:	Surface Mount

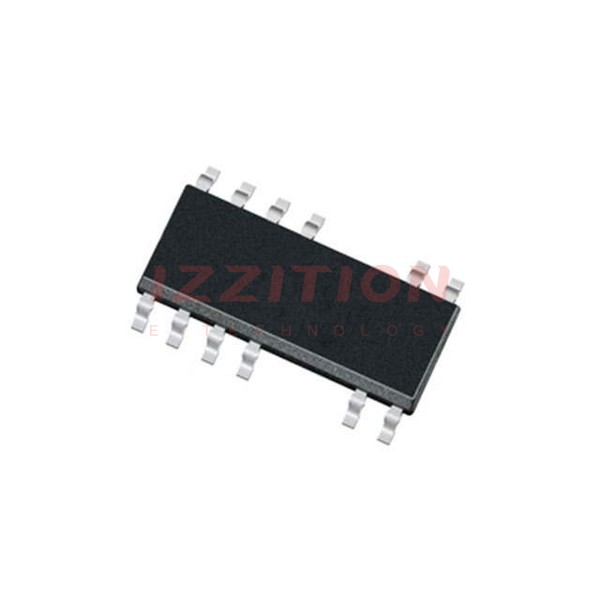

Infineon Technologies ICE5GR4780AGXUMA1
